Dakota Digital MCL-2011 Series



Dakota Digital would like to introduce the new MCL-2011 LED digital information system for CAN bus to replace 2011-up Softail and 2012-up Dyna models with 4-1/2” or 5” tank mount gauges.
The MCL-2011 plugs directly into the stock wiring with no modifications needed, installation is a snap!
Features include an adjustable speedometer (selectable as MPH or KM/h), adjustable tachometer that can also be displayed in the digital readout, fuel range to empty, clock, odometer with two resettable trip meters, engine cylinder head temperature, turn signals, high-beam indicator, neutral indicator, low oil pressure warning, check engine indicator, security, ABS, Cruise on and cruise engaged, low fuel, voltmeter reading with low voltage warning, resettable service miles, resettable hour meter, high speed recall, high rpm recall, user settable countdown service meter with warning, 0-60 mph timer, ¼ mile timer, ¼ mile speed, gear position display compatible with 3 speed through 7 speed transmissions, and adjustable rpm warning point with output for external shift light. The unit also includes an Oil Pressure gauge and Oil Temperature gauge (must purchase senders separately). All of these features in one compact unit that will fit in the factory opening of the Harley Davidson Softail, Fat Boy, and Wide Glide style dashes. Displays self dim at night for convenience. Odometer is user settable at installation to match vehicle mileage.

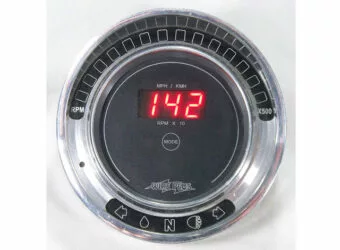

The MCL-2011 is a high brightness BLUE LED gauge.
The MCL-2011-R is a high brightness RED LED gauge.
Both versions retail for $499.95 and are covered by a 24 month warranty against manufacturer defects. No additional parts needed!
For more information contact DAKOTA DIGITAL INC, 4510 W. 61ST STREET NORTH, SIOUX FALLS, SD 57107, call 1-800-852-3228 to order a catalog, or visit our website at www.dakotadigital.com
Also available from your preferred distributor!
