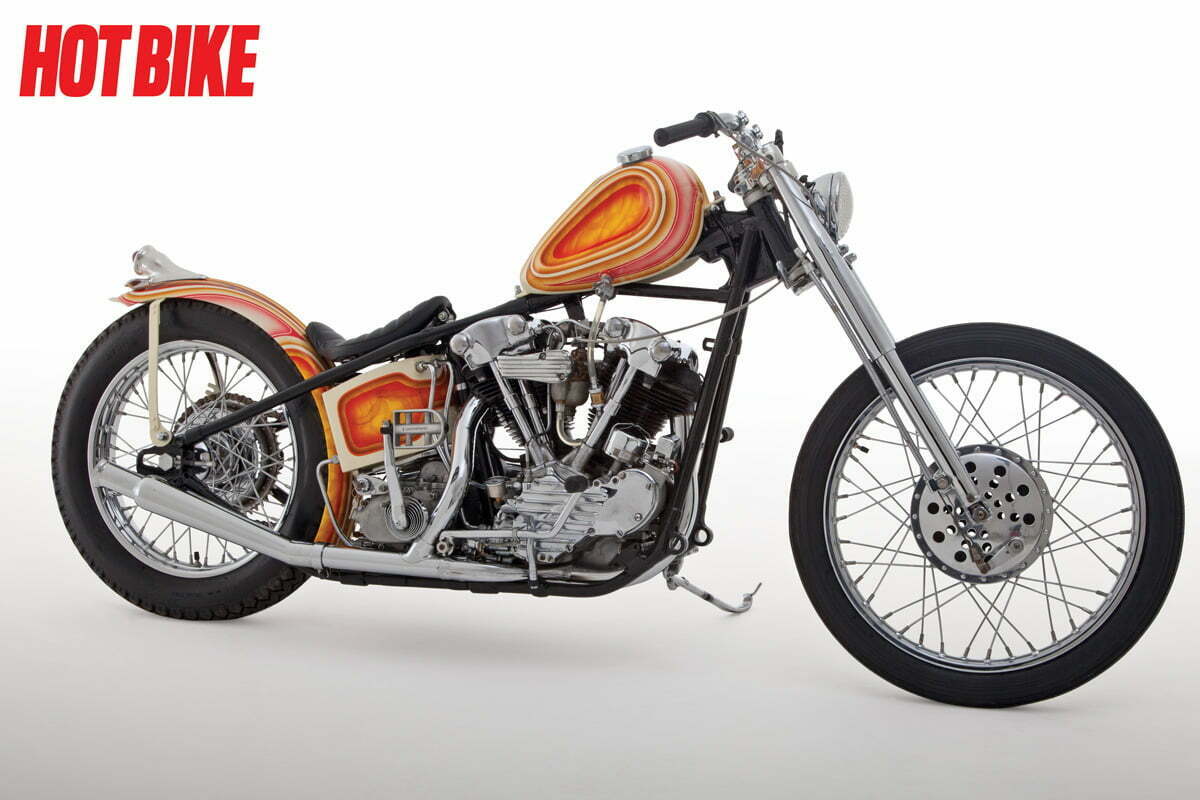

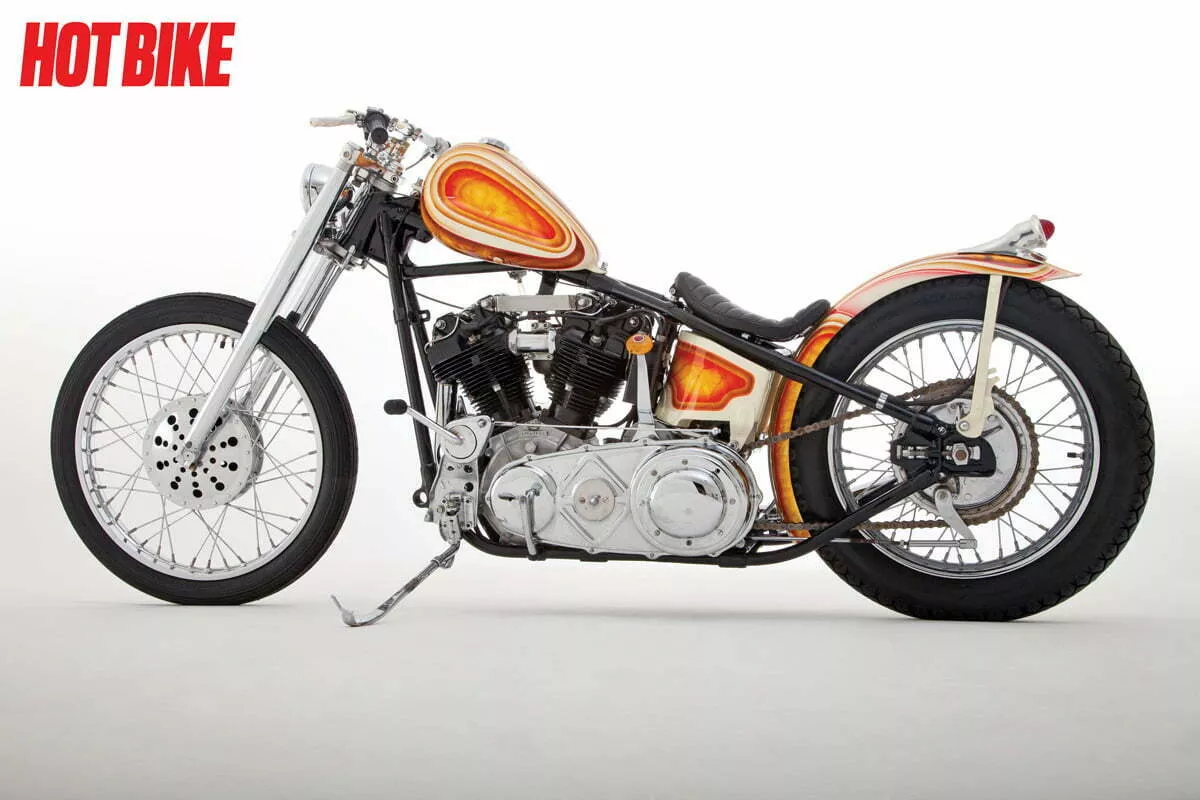

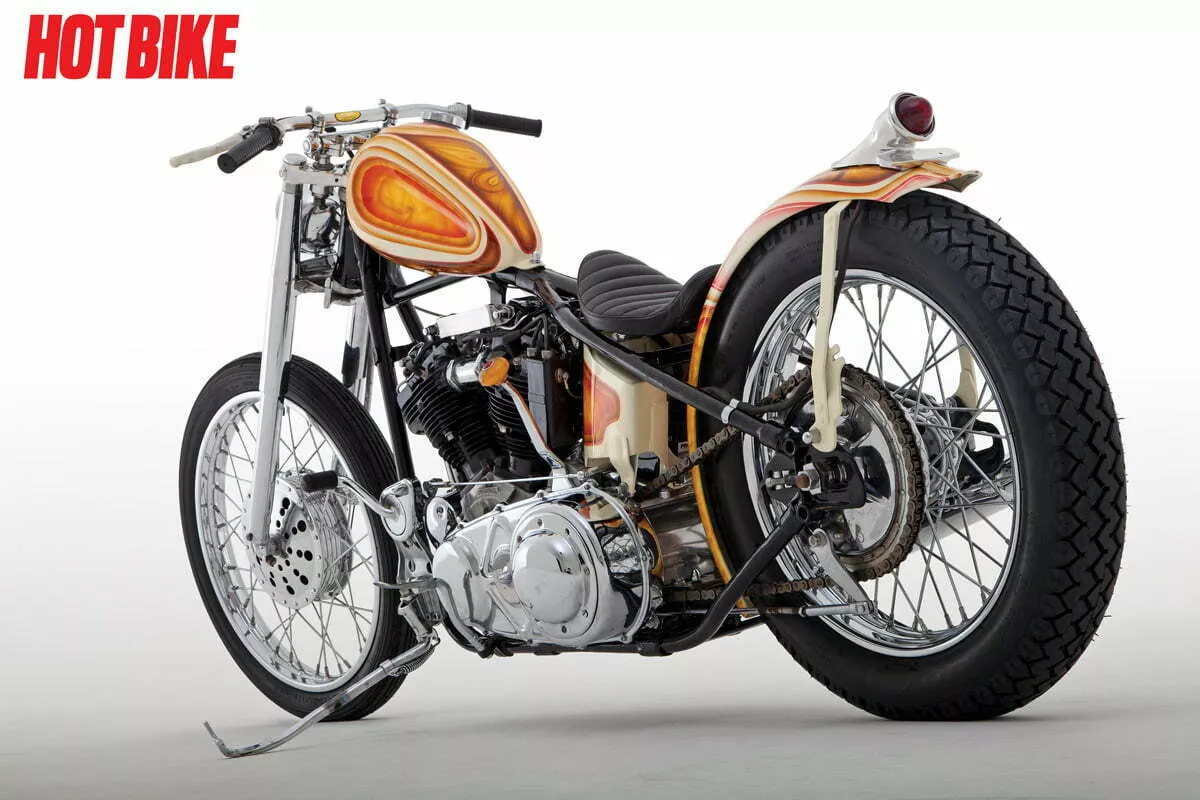

The Book Of Beauty – A Custom 1947 Harley-Davidson Knucklehead








There seems to be a hypothetical handbook for building choppers. In that book, somewhere it carefully spells out the rules of “do” and “do not,” that if violated cast your bike to the fringe of the chop world, banned like a bad porn site behind a firewall. Bike builder Paul Whitehurst too seems to break the mold of the typical chopper bike builder.
With out a hint of facial hair or ratted-out slim-fit tee, Paul also fails to follow the typical biker style guide for proper dress and presentation. But make no mistake about it, Paul is an avid collector and builder of some of the finest bikes on two wheels
<div class="st-block quote text-
Notice: Undefined index: st_text_align in C:laragonwwwhotbike-importblocksquote.php on line 1
“>
Paul is an avid collector and builder of some of the finest bikes on two wheels
, and this ’47 Knucklehead speaks for itself without taking a word from the pages of predefined “cool.”
This Knuck didn’t start its life as a chopper. Instead it was slated for restoration, at least until Paul got busy on it. “The bike started out as a restoration project that took a wrong turn. My friend, Chuck Vogel, and I were at the David Mann Chopperfest when we were approached by our friend Landy who asked what we had brought up for the show. We told him and asked what he had brought expecting to see something nice, as Landy typically brings. He pointed over to the ‘For Sale’ corral and he said he brought that. It was your typical black paint, club-style chopper. It was the ugliest chopper I had seen in a long time, but it ran really well. I didn’t really have an interest in it as I was beginning to start a restoration on a ’37 Knucklehead. That was until he told me the price and I bought it right there.”
Even though a turn of the key was all that was needed to fire up the 75-year-old motor, it was far from ready to rumble down the road, just yet at least. “I did nothing with it for the first weeks. I barely looked at it. The frame was completely molded and not very well. I removed all of the molding and found it was a late-’36/early-’37 frame. I had a nice frame for this ’37 restoration project, so the chopper was turned into a pile of parts.
<div class="st-block quote text-
Notice: Undefined index: st_text_align in C:laragonwwwhotbike-importblocksquote.php on line 1
“>
so the chopper was turned into a pile of parts
My friend, Chuck, had an extra bull-neck frame he wasn’t using, so he also donated it to the project. I wanted something that was not a bobber or a chopper, but something in between.”

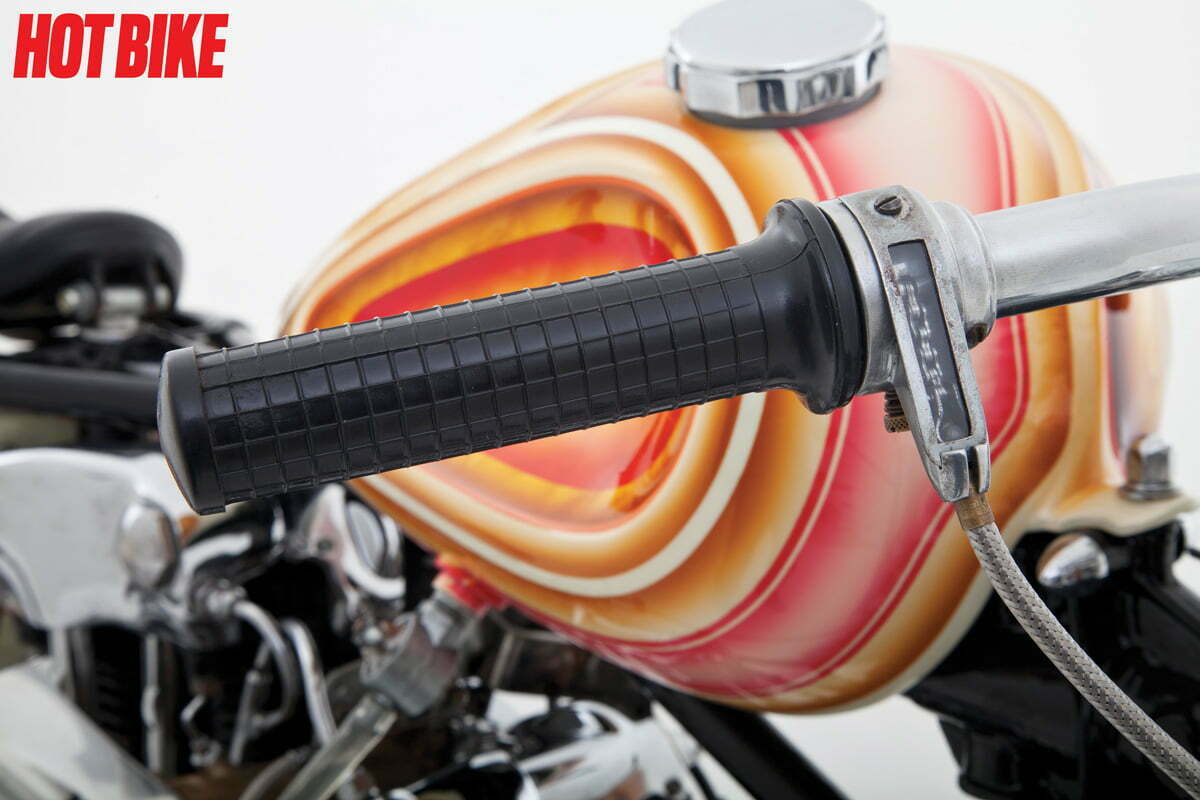

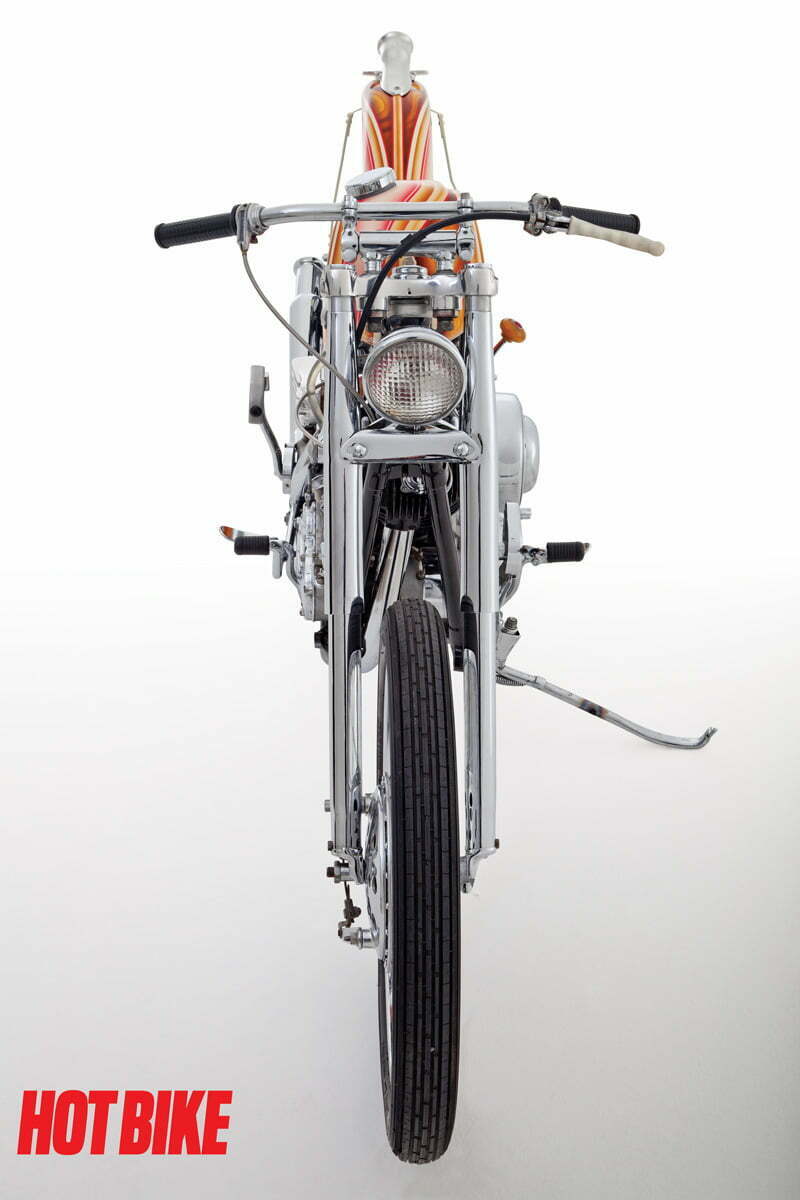

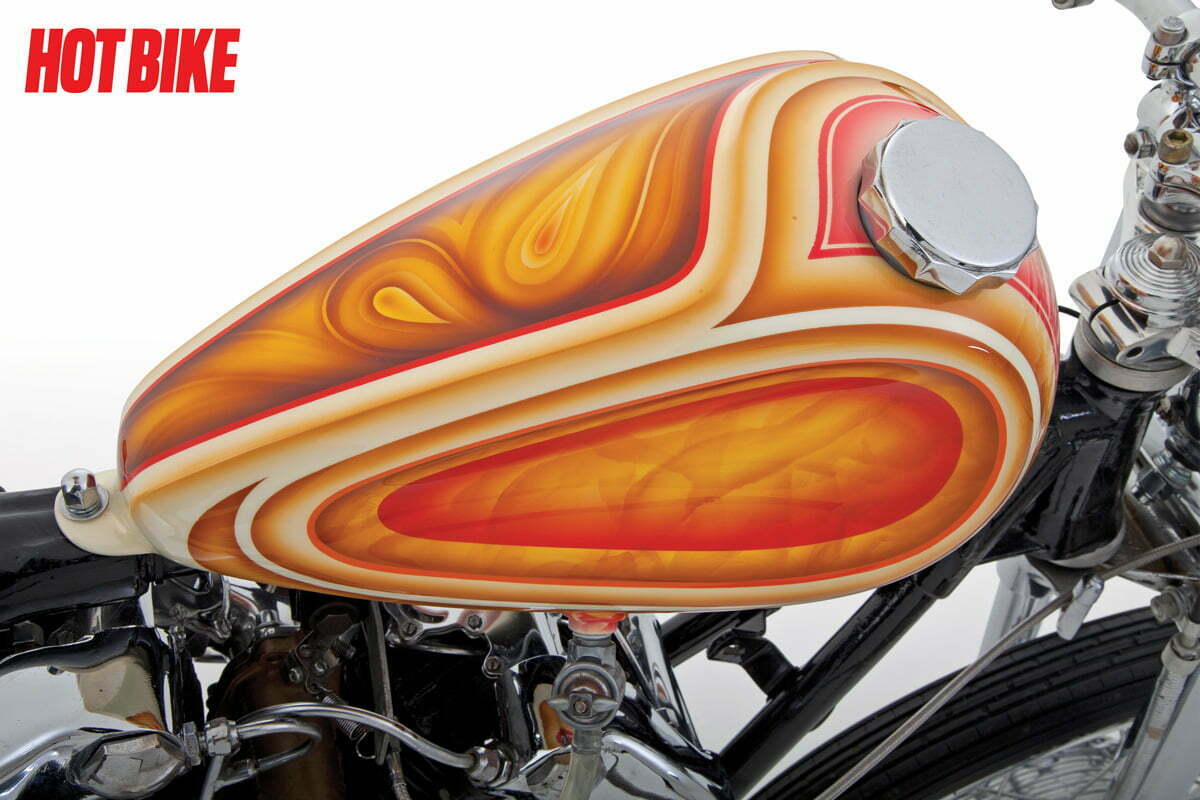

Paul is no stranger to a wrench and quickly got to turning ugly into unique. “I used a narrow Sportster frontend with Triumph fork covers. I made the riser and fork caps. I had an old GME tank that I wanted to use but my nephew dropped and dented it on one side. So I dented the other side and added some molding. I also used a Wassell fender with a narrowed Knucklehead fender brace and gave all of it to Sonny Boy for paint. I think he did great job. I made up some mid controls and a brake clutch based off a design by Stan Dishong. After all that, the bike came together fairly quickly.”
After reviewing the handbook of cool, it’s safe to say that Paul’s bike deserves an appendix. He has proven that style and skill can often rewrite what is the acceptable definition of cool.
<div class="st-block quote text-
Notice: Undefined index: st_text_align in C:laragonwwwhotbike-importblocksquote.php on line 1
“>
He has proven that style and skill can often rewrite what is the acceptable definition of cool.
Specifications | |
---|---|
General | |
Owner | Paul Whitehurst |
Year/Make/Model | 1947/H-D/Knucklehead |
Fabrication | Paul Whitehurst |
Build Time | 2 months |

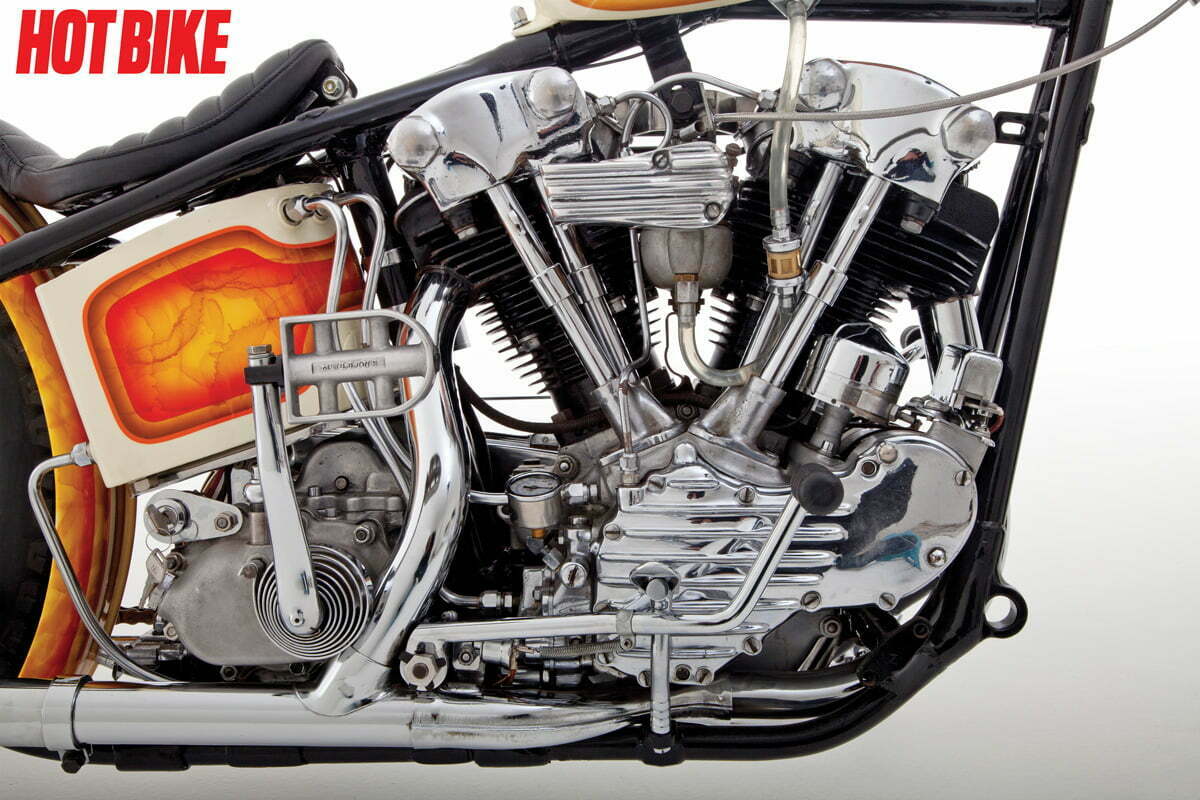

Engine | H-D |
Year/Type/Size | 1947/H-D/74-inch |
Cases | H-D |
Cylinders | H-D |
Heads | H-D |
Rocker Boxes | H-D |
Cams | 450 Cam |
Carburetor | Linkert |
Air Cleaner | Roth |

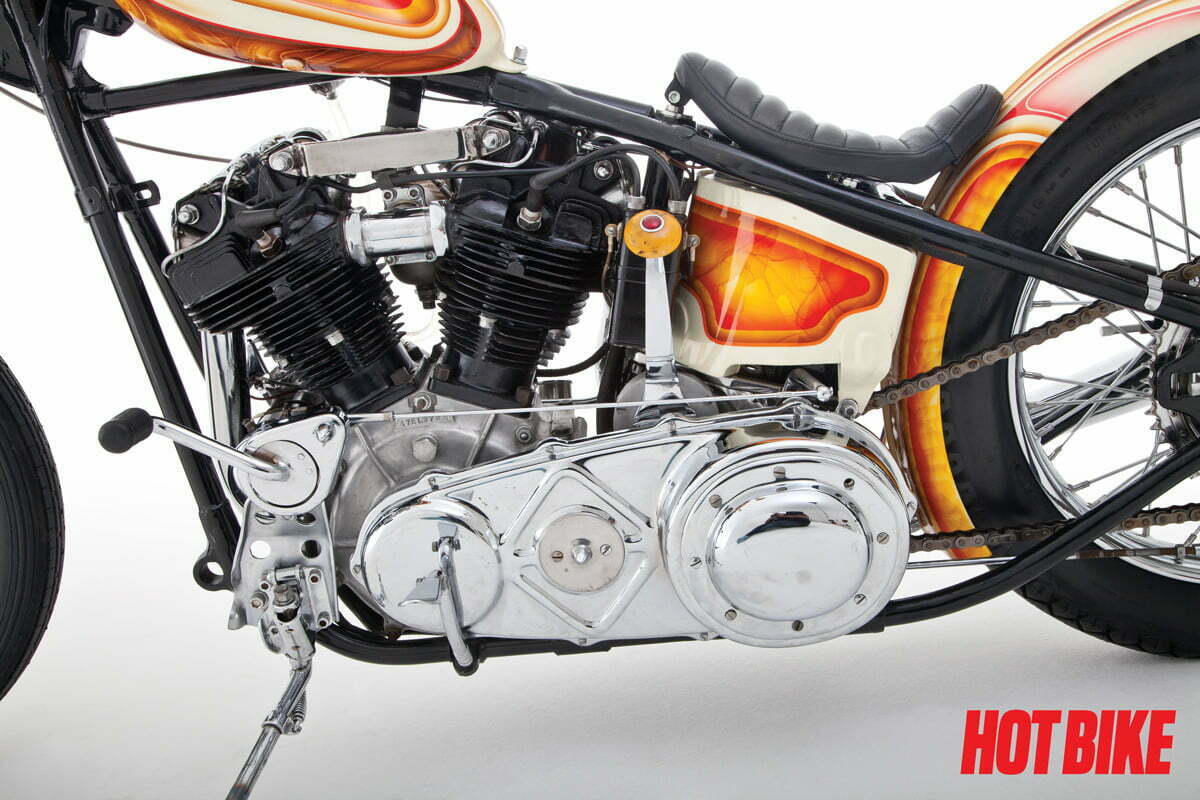

Transmission | |
Year/Type | 1947/four-speed |
Gears | Andrews |
Primary Drive | Beltdrive |
Frame | |
Year/Type | 1946/47/H-D/Bullneck |
Rake/Stretch | Stock |
Suspension | |
Frontend | H-D K model with Triump fork covers |
Length | +2 |
Triple Trees | K Model |
Rear Shocks | Rigid |
Wheels, Tires, and Brakes | |
Front | |
Builder/Size | 21-inch |
Calipers | Early Sporster Drum Brake with speed holes |
Rear | |
Builder/Size | 18-inch |
Caliper | Drum Brake |
Finish/Paint | |
Manufacturer | House of Kolor |
Paint/Graphics | Sonny Boy Paint |
Plating/Polishing | Verns |
Accessories | |

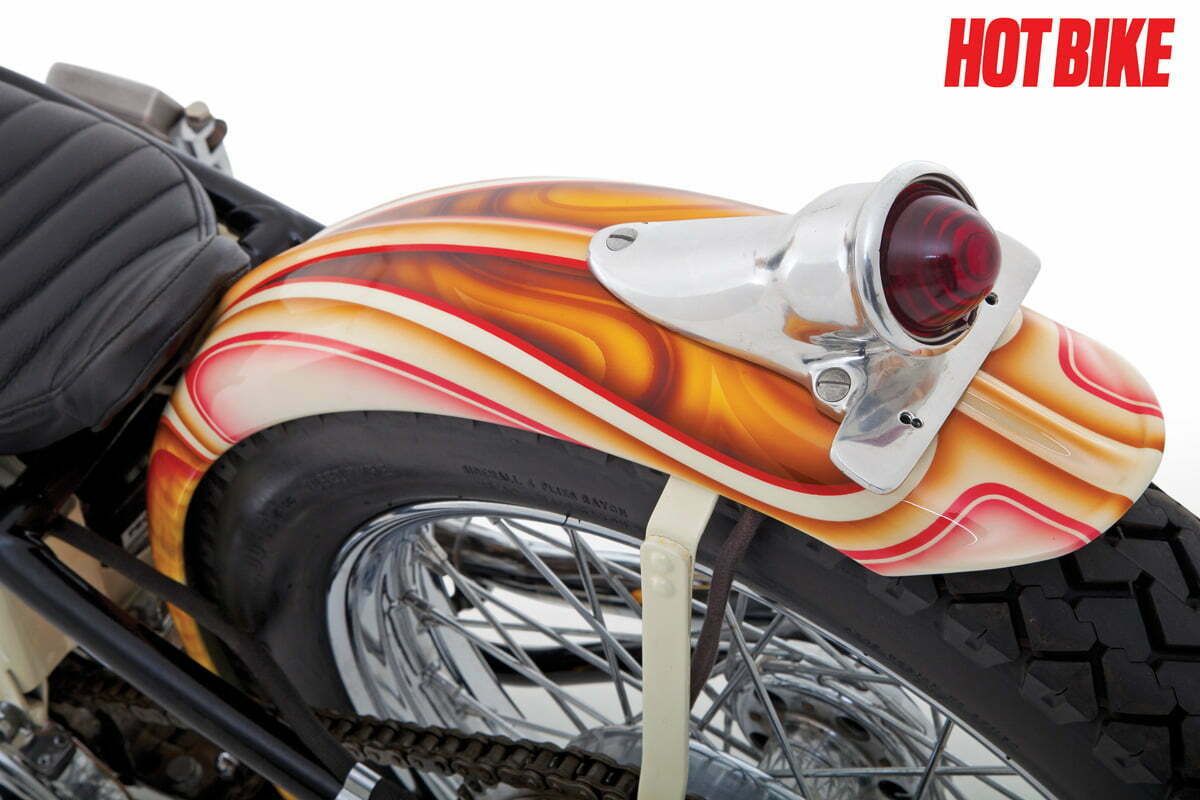

Rear Fender | Wassell with narrowed H-D Brace |
Gas Tank | GME |
Handlebars | Flanders with custom 1-inch risers |
Hand Controls | Stock Brake Handle |
Foot Controls | Lee Style Clutch |
Floorboards | Custom mid controls |
Headlight | Guide Tracktor |
Taillight | Crocken |

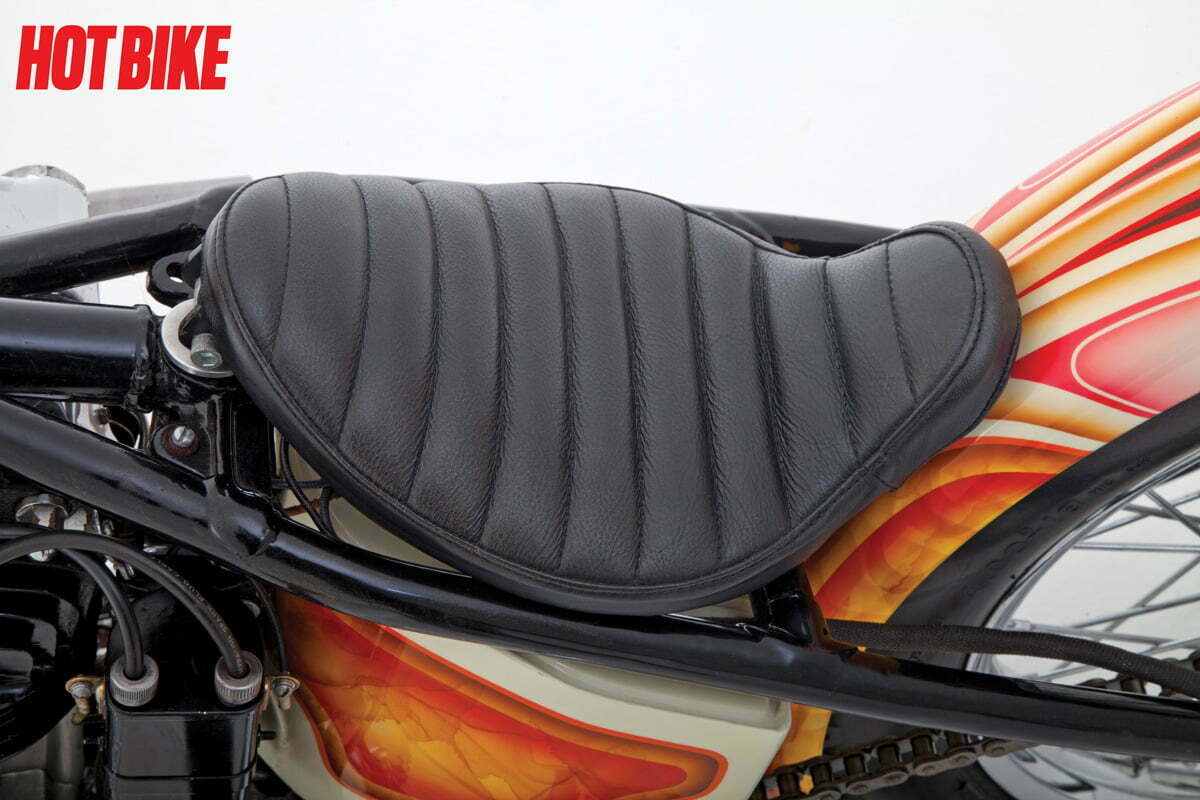

Seat | Duane Ballard |
