Two Brothers Exhaust/Intake and Power Commander V Install Part 1

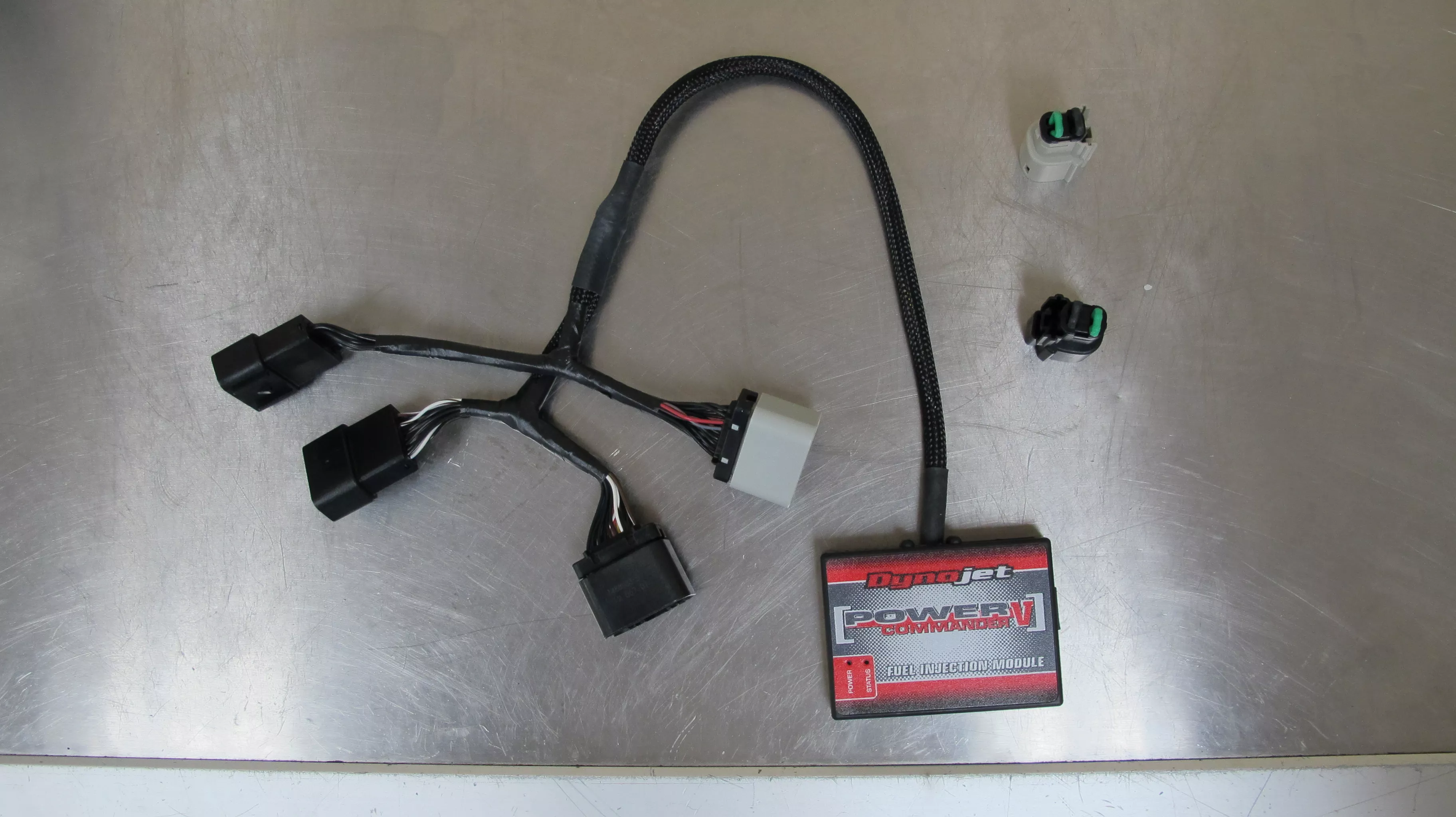

In the beginning, there was Power Commander, and it was good.
Words and Photos: John Zamora
It’s been said that a motor is nothing but a huge air pump. The more air brought in, mixed with more fuel, the more power that can be made. After a motor fires, all those burned gases need to be removed, and getting them to exit the motor in the most efficient manner is the goal of most tuners. Unfortunately, the average consumer often overlooks or fails to understand the fuel side. Today’s stock ECUs are more controlled than a teenager’s browser history and are programmed only to account for so much of an increase of fuel with the corresponding amount of air. They are typically designed to achieve the most efficient emissions and not necessarily maximum power.
No doubt the 2014 Harley-Davidson Low Rider has been a hit to the market with its retro looks and style. But Dyna’s are more about riding than looking pretty, so we decided to install a Two Brothers Racing Comp-S exhaust system, Comp-V stack air intake, and Power Commander V Fuel Injection Module.
Before turning a single bolt, we took the stock Low Rider over to our Dynojet Dyno for some initial numbers. Stay tuned to find out how much power we made when it was all said and done.
Check out hotbikeweb.com for video clips of both the dyno run and a quick walk around.
Box stock and ready to rock, this 2014 Low Rider is begging to have that heavy chrome restrictor taken off.
Words and Photos: John Zamora
After removing the seat and left-hand side cover, unplug the wiring harness from the ECU.
Words and Photos: John Zamora
Route the Power Commander harness through the hole in the frame. We found it necessary to unbolt the ECU box and route the wires through the small area with the gentle help of a set of needle-nose pliers.
Words and Photos: John Zamora
Disconnect the O2 sensor from the wiring harness, and plug the Dynojet O2 Optimizer into the stock wiring harness.
Words and Photos: John Zamora
Unplug the O2 sensor from the front of the motor, and remove the wire completely, as the O2 sensor is no longer utilized. Plug in the Dynojet O2 Optimizer to the lower plug as well.
Words and Photos: John Zamora
Mount the Power Commander under the opening of the frame, and zip-tie all the connectors out of the way.
