Burly Sissy Bar & Brat Seat Install

They both install in less than a half hour, and all of the needed hardware for both the seat and sissy bar is included. Check it out!
Words and Photos: Jeff G. Holt
In the world of Harley-Davidson Iron 883 Sportsters, mean and lean is the name of the game. Riding with a friend on the back is not the easiest of feats with the Iron 883—or most Sporties for that matter. That’s not to say that two-up riding can’t be done. It just takes a few upgrades in which to do so. And those upgrades used to be big, heavy, and look like they were on loan from your dad’s bagger. Well, the fine folks at Burly Brand decided to change all of that with its line of sissy bars and seats. Burly offers more than a few of these items to fine-tune your Sportster with, but we went with one of its two-up Brat seats and a 20-inch sissy bar with back pad. The diamond tuck seat is made in America, and although it looks slim, it still has ample padding for daylong rides. The sissy bar is TIG-welded right here in the good ol’ USA and powdercoated black to match the Dark Custom looks of the Iron 883.

Here is our project 2013 H-D 883 Iron and the new Burly Brand accouterments waiting to be installed.
Photo: Jeff G. Holt

The sissy bar pad needs to be installed once it is removed from the box.
Photo: Jeff G. Holt

Here’s the simple, yet effective, Burly 20-inch sissy bar ready for installation.
Photo: Jeff G. Holt

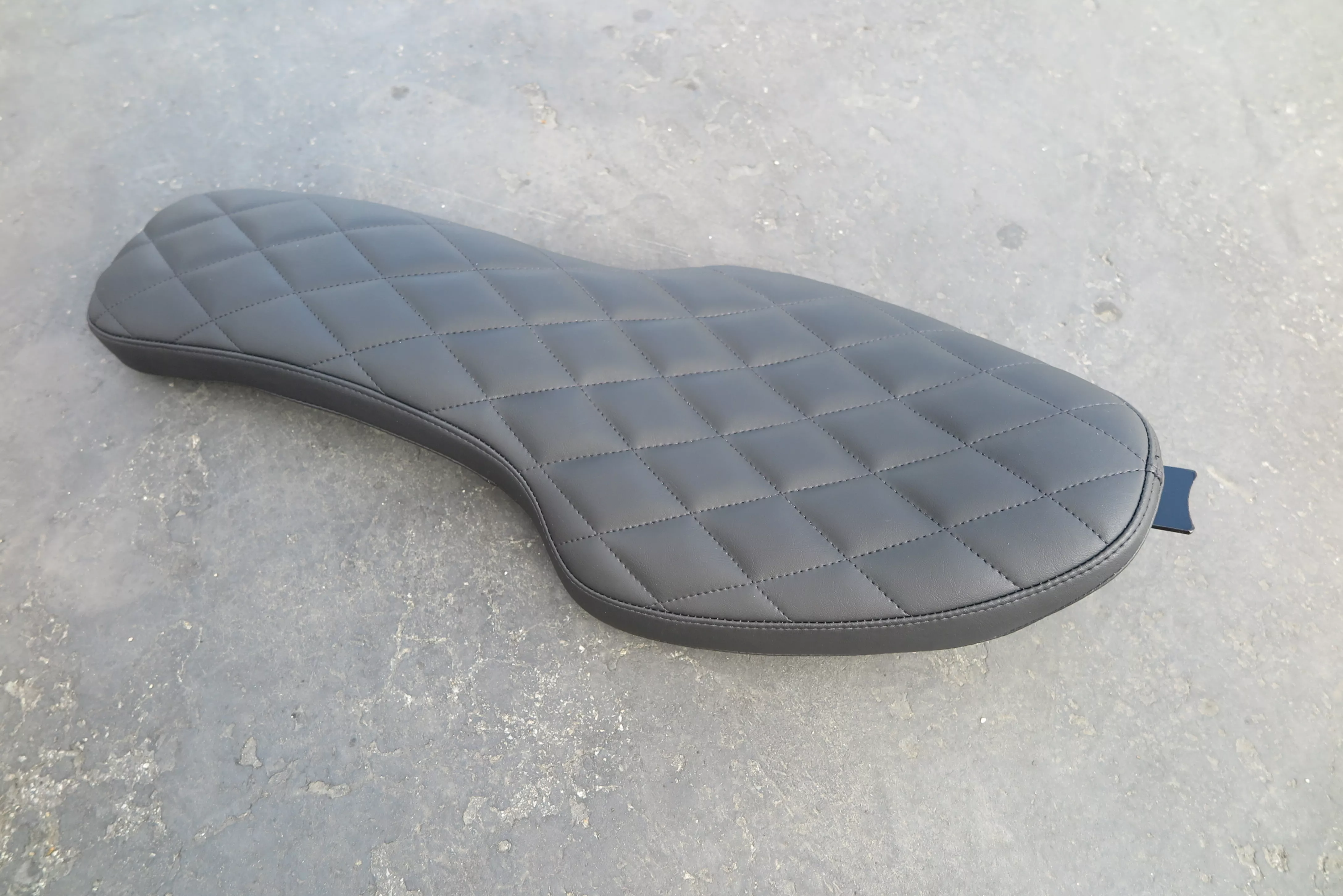

The Burly two-up Brat seat matches the sleek styling of the Iron 883 much better than the seat it came with from the factory.
Photo: Jeff G. Holt

We removed the stock seat from the bike via its single screw at the back of the seat. It just slid out after that.
Photo: Jeff G. Holt

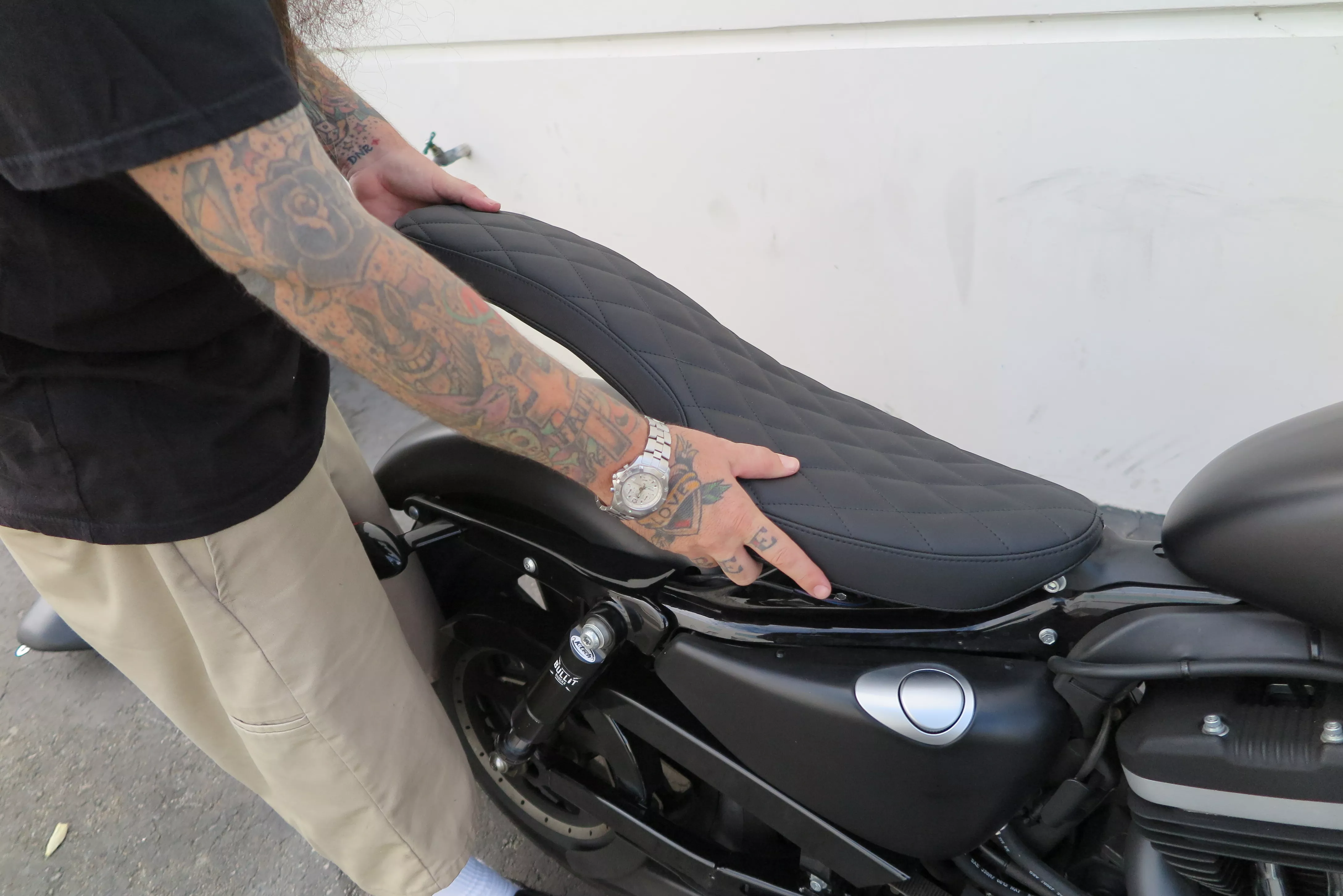

The new Burly Brat seat slid right back in the place of the stock single seat and used the rear seat screw mount on the bike’s fender with no issues whatsoever.
Photo: Jeff G. Holt

As you can see, the new Burly Brat two-up seat looks right at home on its new bike.
Photo: Jeff G. Holt

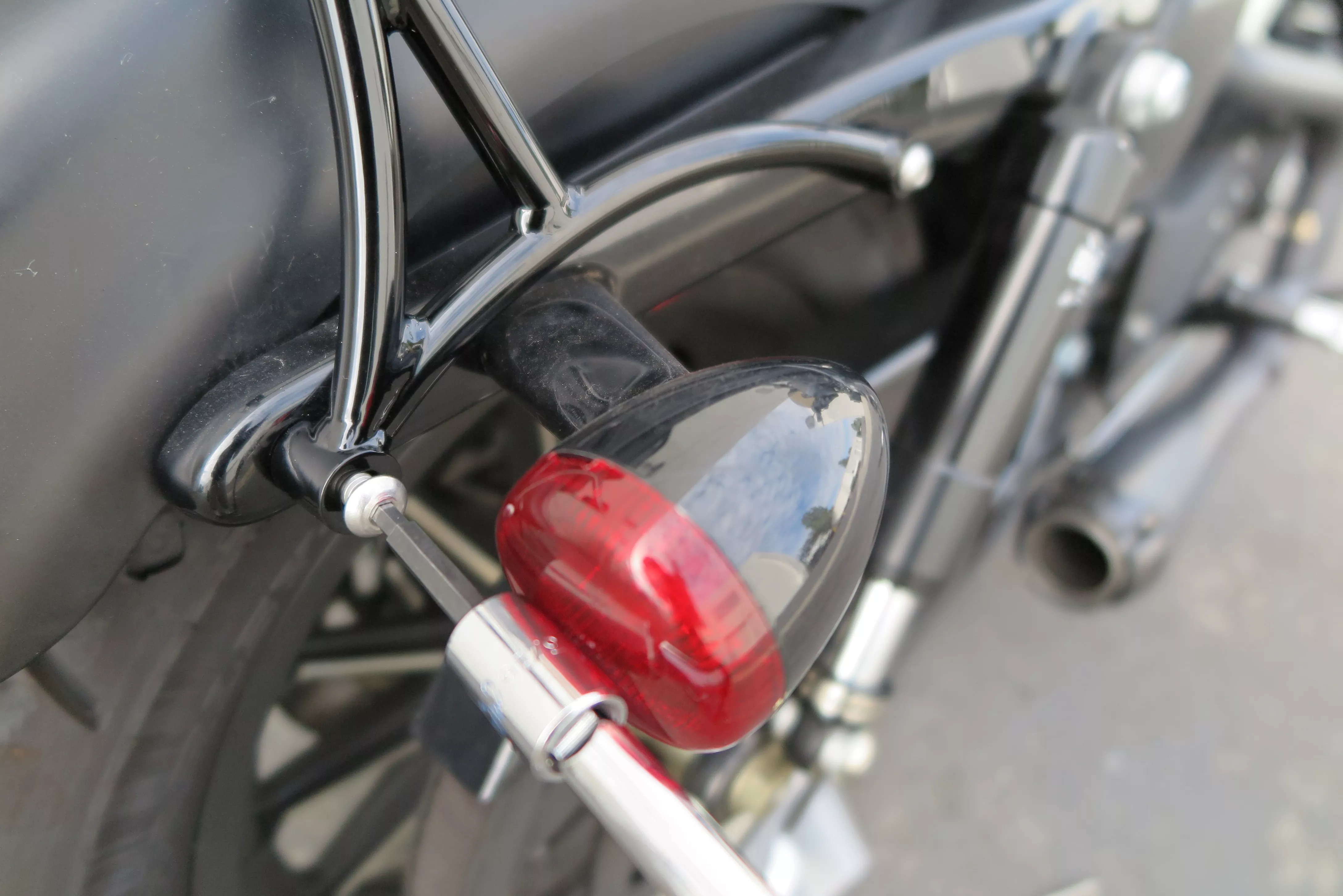

The Burly sissy bar uses all of the stock fender and fender strut mounting locations, so all you have to do is pull the old hardware and use the provided longer bolts.
Photo: Jeff G. Holt
We also used a liberal amount of blue threadlocking compound on all four bolts of the sissy bar before tightening to factory specifications.
Photo: Jeff G. Holt
RELATED | MORE SPORTSTERS
And with less time than it takes to order a pizza and have it delivered, we made our H-D Iron 883 a two-up riding machine!
Photo: Jeff G. Holt

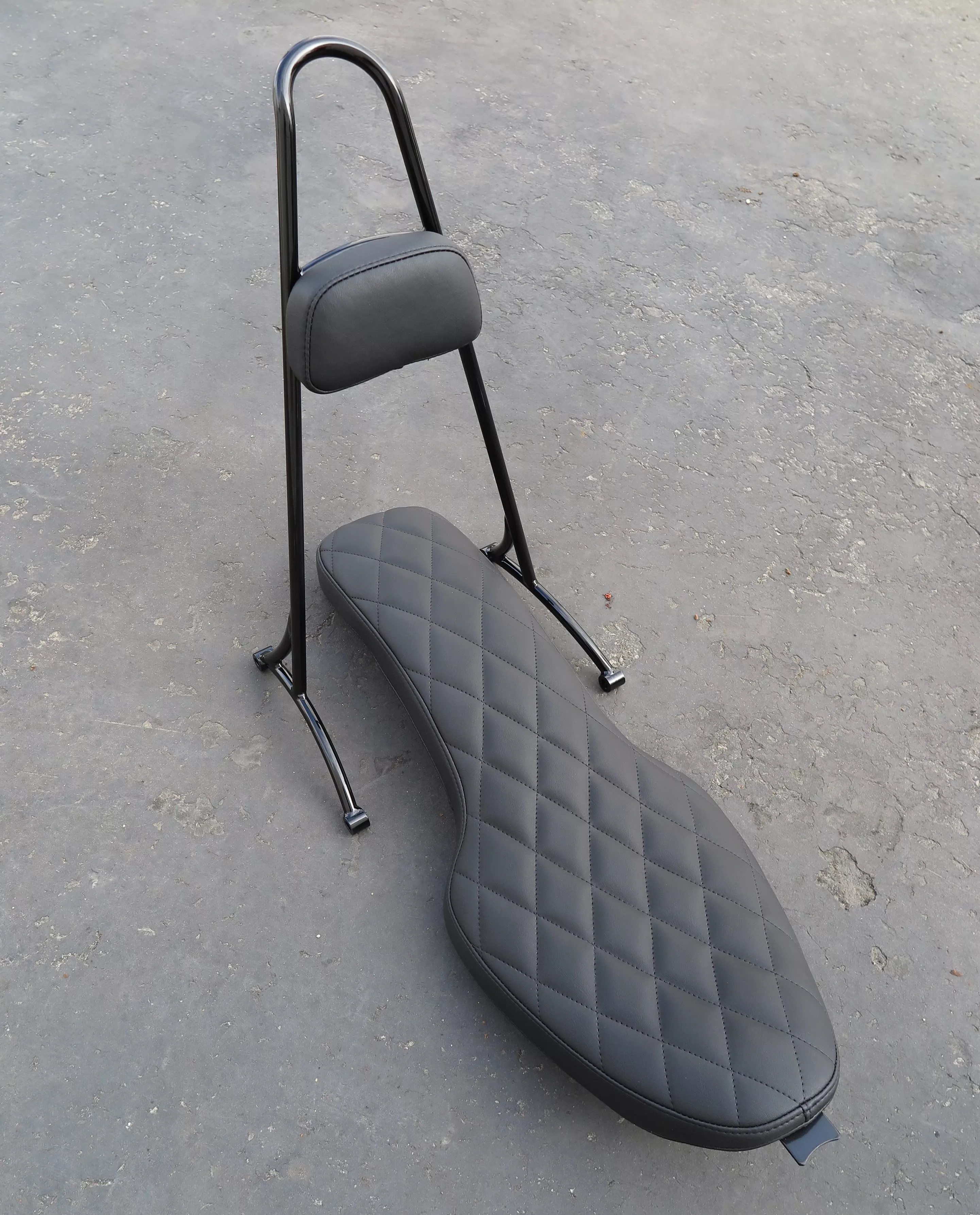

The Burly Brand Brat two-up seat and 20-inch sissy bar with back pad complement the looks of our customized Sportster very well. Hey, Double Bubble, we’ll give you a ride!
Photo: Jeff G. Holt
Before…
Photo: Jeff G. Holt
…and after.
Photo: Jeff G. Holt
